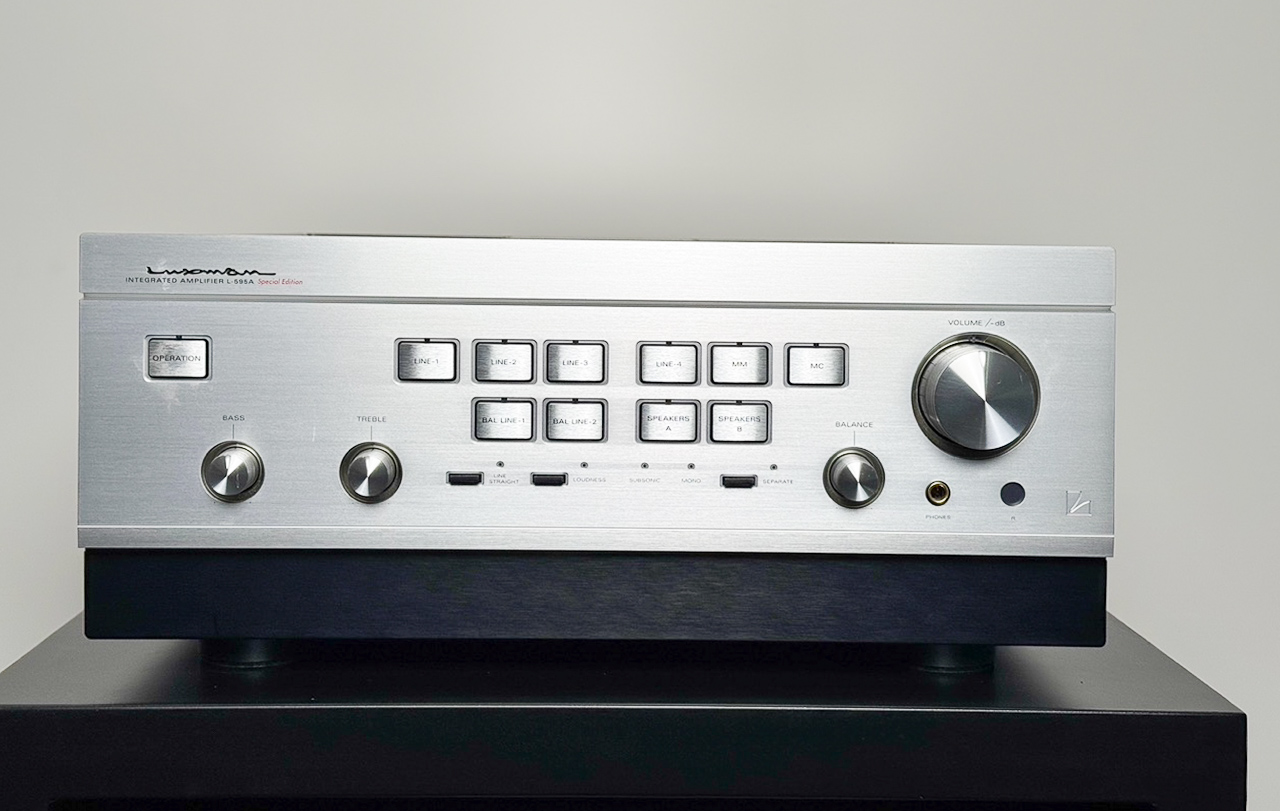

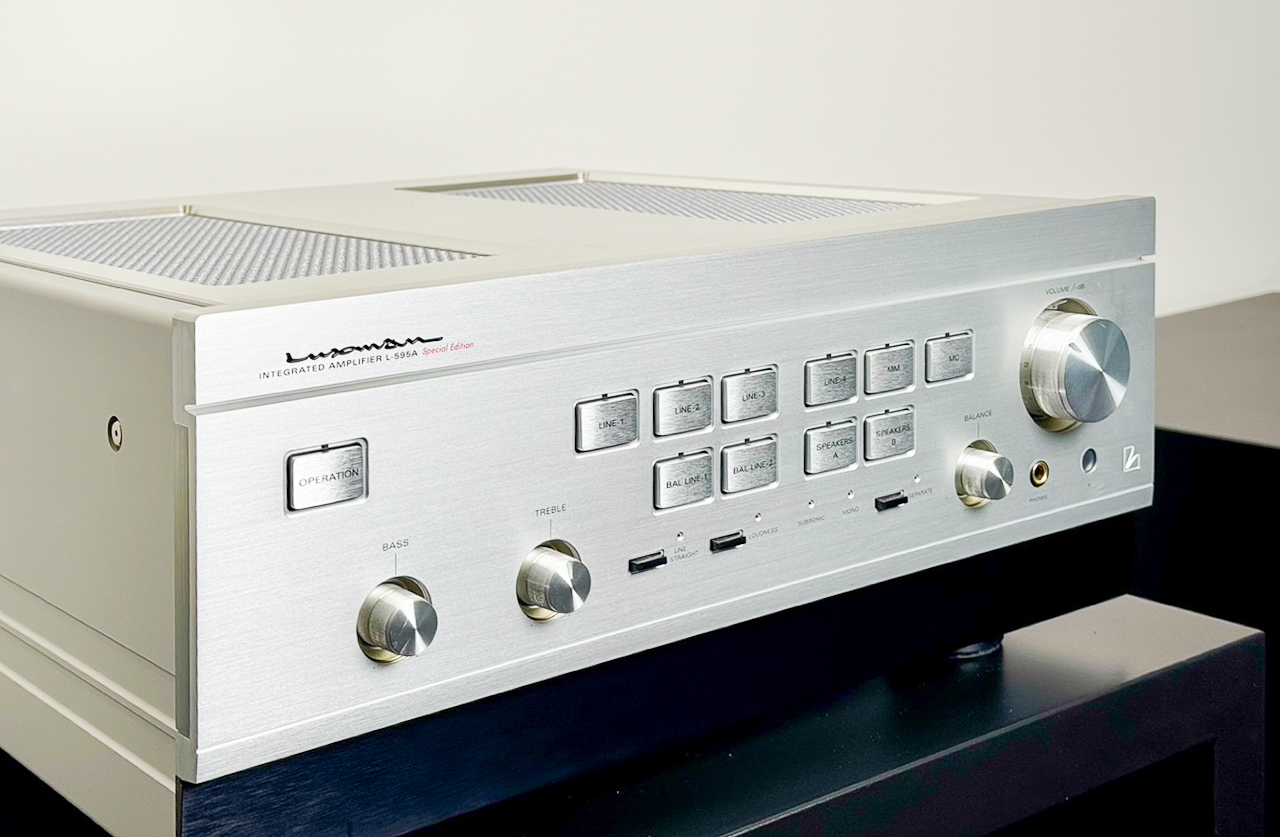

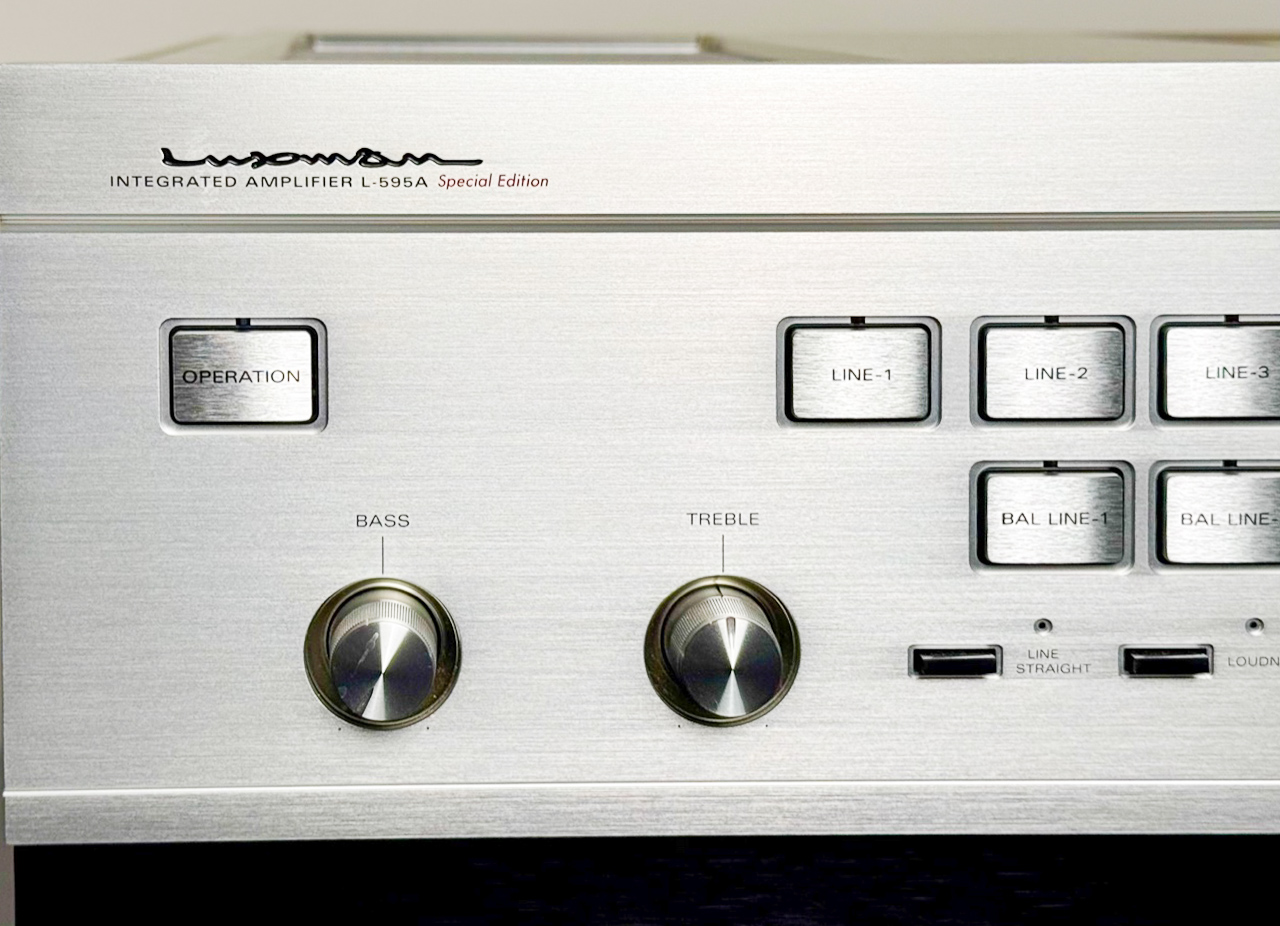

Luxman L-595A Geïntegreerde Klasse A versterker

Vandaag besteld, morgen in huis
Binnen een week leverbaar
Tussen 1 en 4 weken beschikbaar
Op aanvraag beschikbaar
Tussen 1 en 4 werkdagen beschikbaar
No items found.

Specificaties

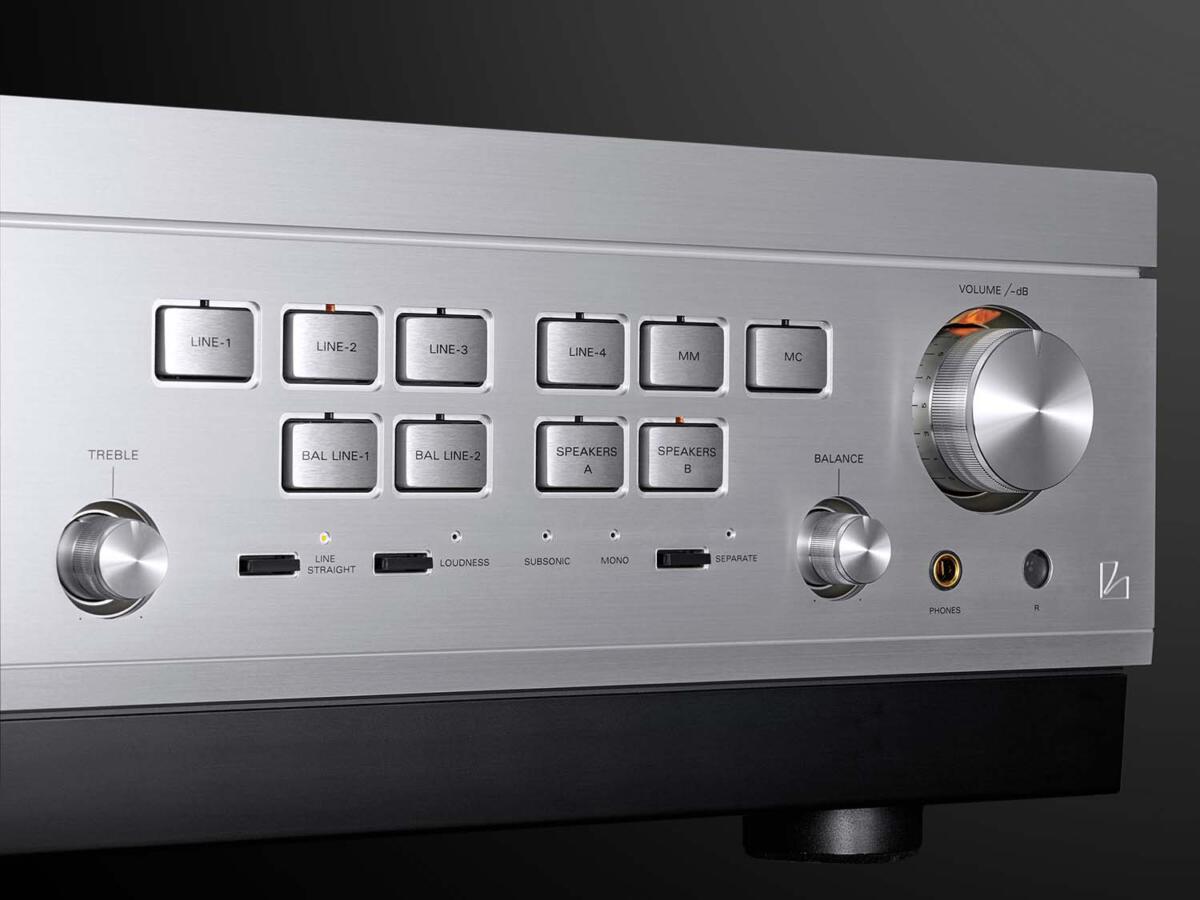

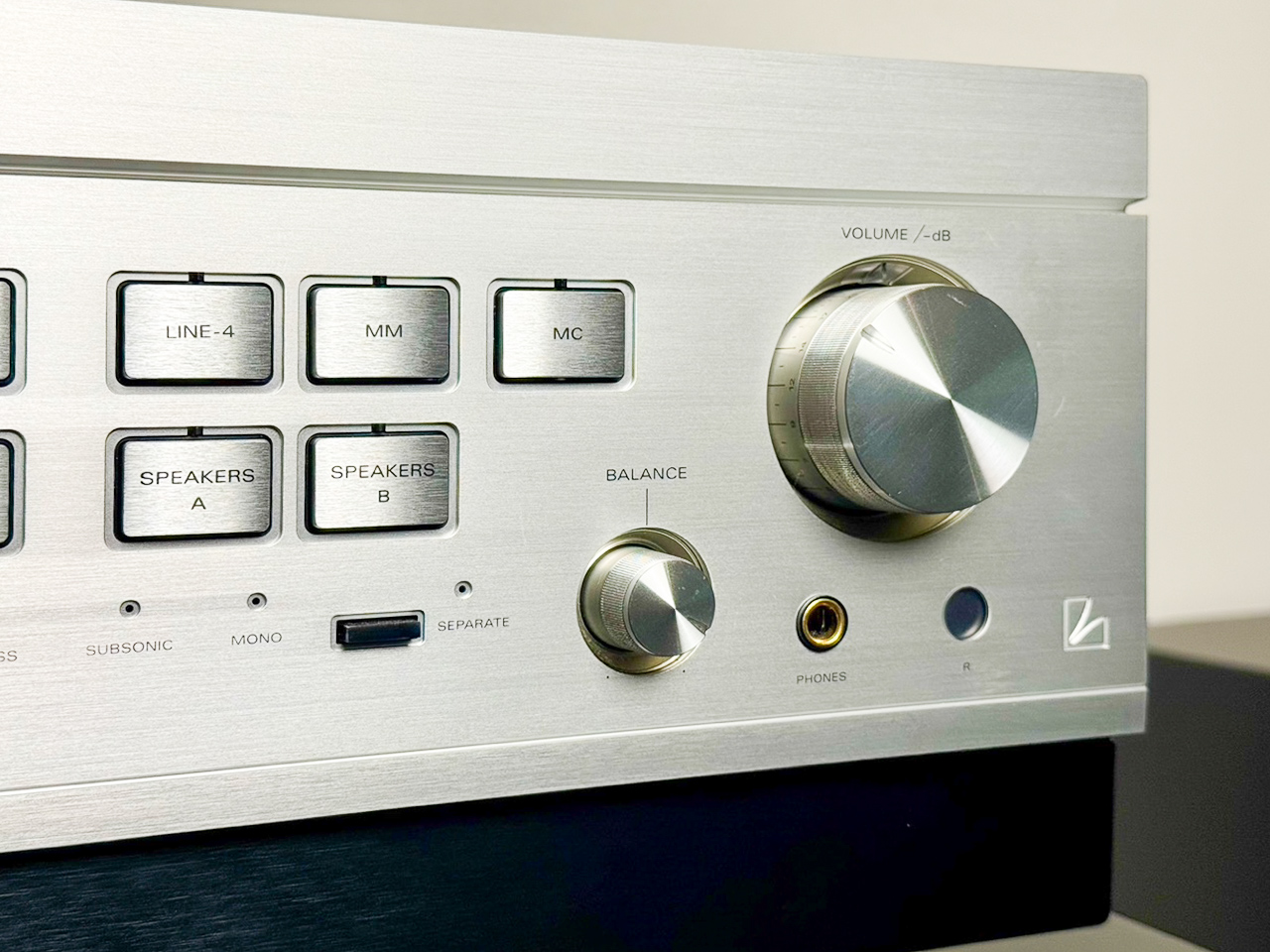

Rated output - 30 W + 30 W (8 Ω) 60 W + 60 W (4 Ω) Total harmonic distortion - 0.007 % (8 Ω\, 1 kHz for both channels simultaneously\, line straight on) 0.06 % (8 Ω\, 20-20 kHz for both channels simultaneously\, line straight on) Pre-amplifier Input sensitivity/input impedance - PHONO (MM) : 2.5 mV/47 kΩ - PHONO (MC) : 0.3 mV/100 Ω - LINE : 180 mV/47 kΩ - BAL. LINE : 180 mV/55 kΩ Main-amplifier - Input sensitivity/input impedance - MAIN IN : 550 mV/47 kΩ Output voltage PRE OUT - 1V Signal to Noise Ratio: - PHONO (MM) : 91 dB or more (IHF-A correction\, 5 mV input) - PHONO (MC) : 75 dB or more (IHF-A correction\, 0.5 mV input) - LINE : 105 dB or more (IHF-A correction\, input shorted\, line straight on) Frequency Response: - PHONO (MM) : 20 Hz to 20\,000 Hz (±0.5 dB\, line straight on) - PHONO (MC) : 20 Hz to 20\,000 Hz (±0.5 dB\, line straight on) - LINE : 20 Hz to 100\,000 Hz (within –3 dB\, line straight on) Tone control Maximum Change: - Bass +/- 8dB at 100 Hz - Treble at +/- 8dB at 10 Khz Loudness control: - 100 Hz +7dB - 10 Khz +5dB Damping factor : 370 Supplied functions: • Input selector (LINE-1 to LINE-4\, BAL LINE-1 to BAL LINE-2\, PHONO MM/MC) • Speaker selector button (A\, B) • Mute button (remote control) • Monaural button (remote control) • Tone control • Phone jack • Phase inverter switch • Balance control • Subsonic button (remote control) • Separate button • Line straight button • Loudness button Accessories: • Remote control RA-17A • Owner’s Manual (This document) • Power cable • Safety cautions • 2 AAA batteries Power supply : 230 V 〜 (50 Hz) 330 W Power consumption : 0.4 W (at standby)\, 230 W (at no input) standby) Weight : 29.0 kg (main unit)

Wil jij dit product in het echt ervaren?

Dit product staat voor je klaar in Hilversum
Onze experts helpen je met vragen over al onze producten
Krijg persoonlijk advies over uw luisterruimte
Koop dit product in de winkel of online

Dit product is beschikbaar op aanvraag
Onze experts helpen je met vragen over al onze producten
Krijg persoonlijk advies over uw luisterruimte
Koop dit product online

Dit product is momenteel niet online te koop.
Neem contact op om dit product te bestellen
Contact

Omschrijving

Meer Van Dit Merk

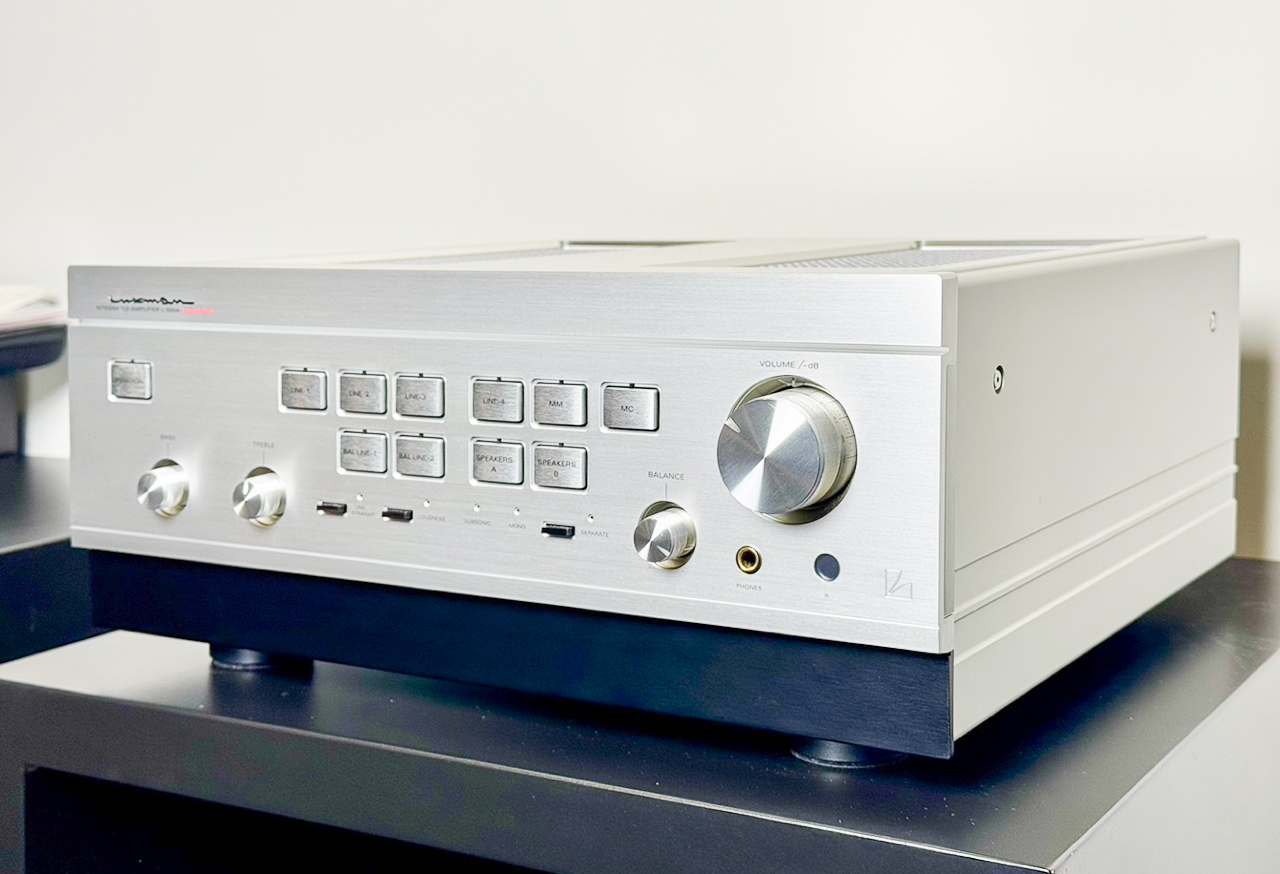

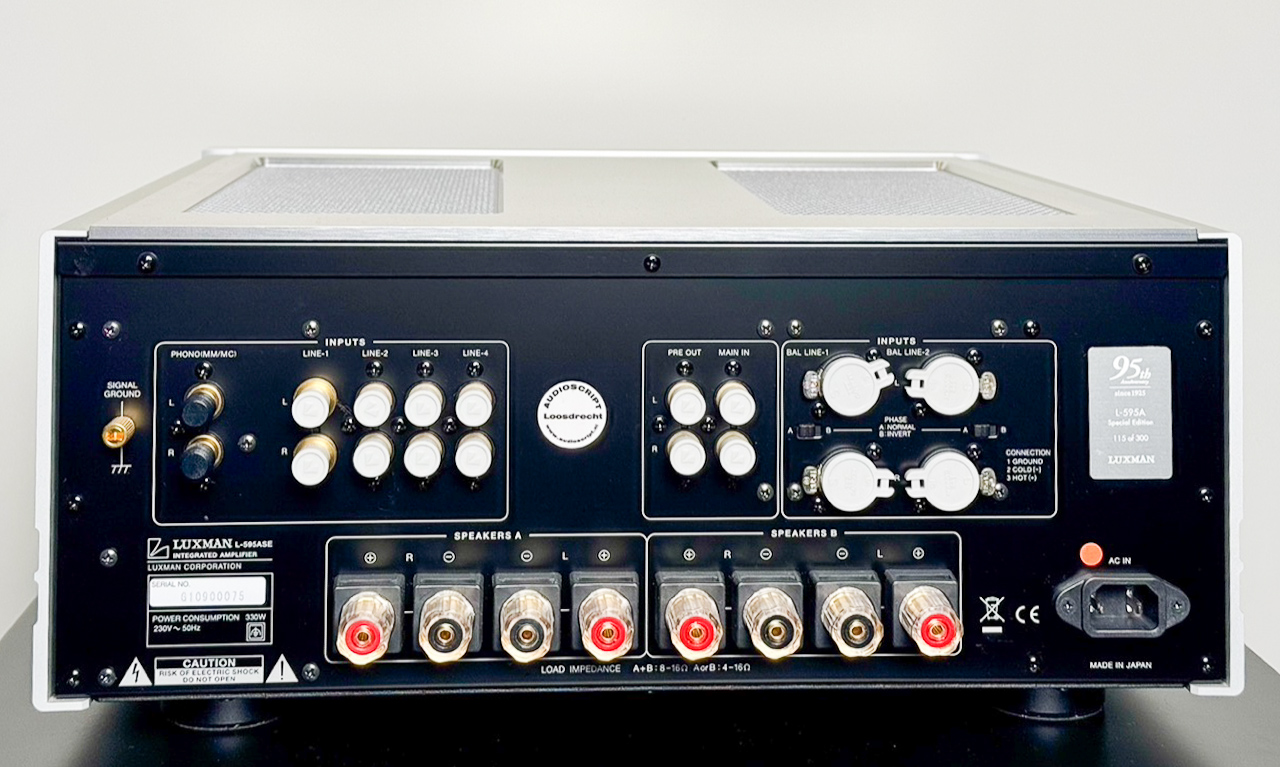

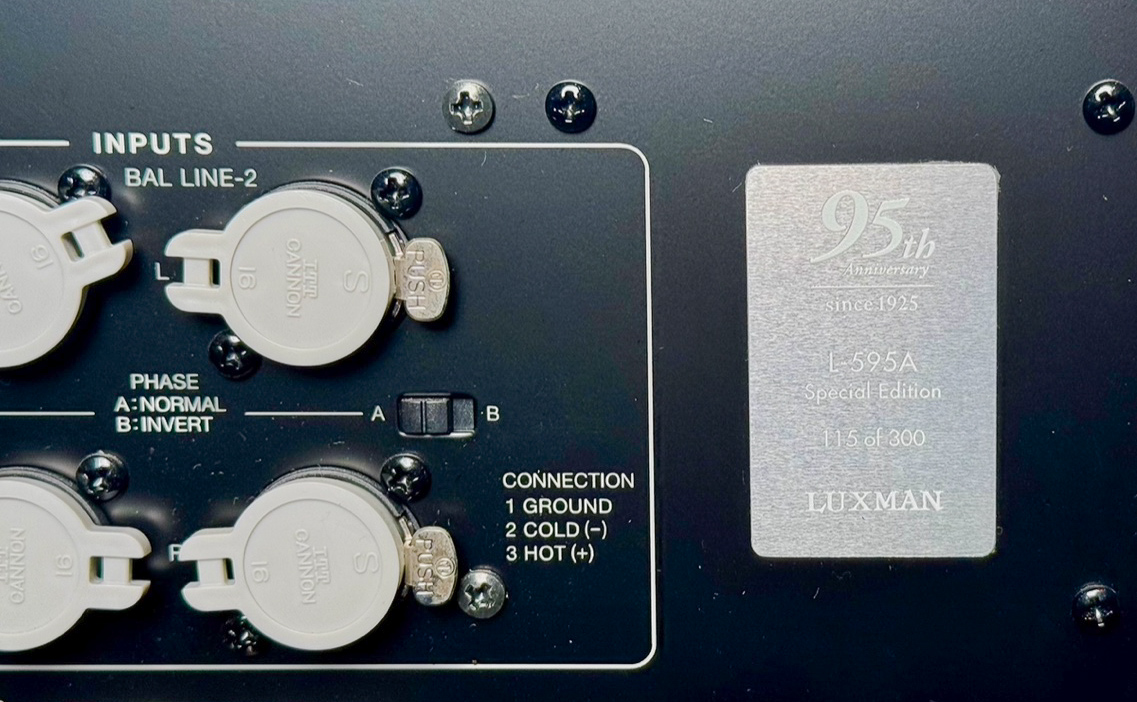

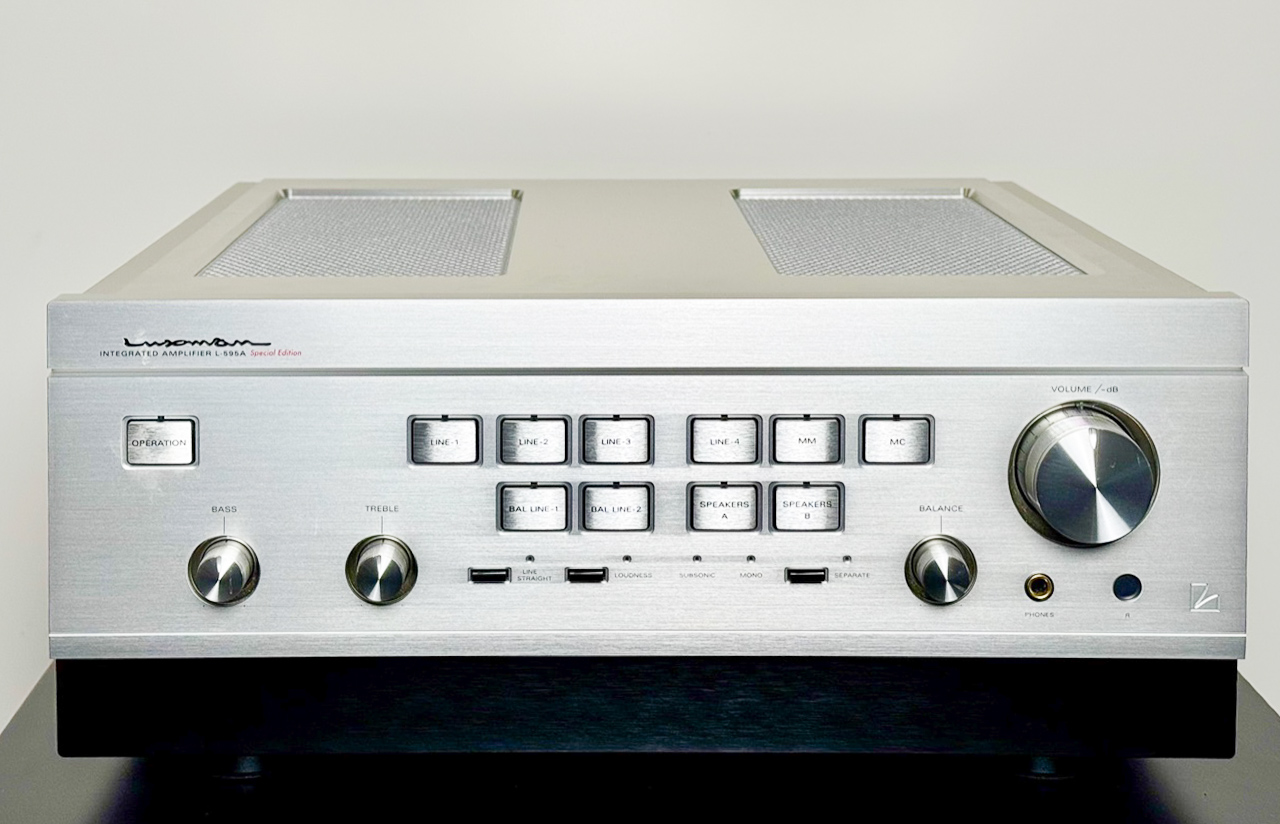

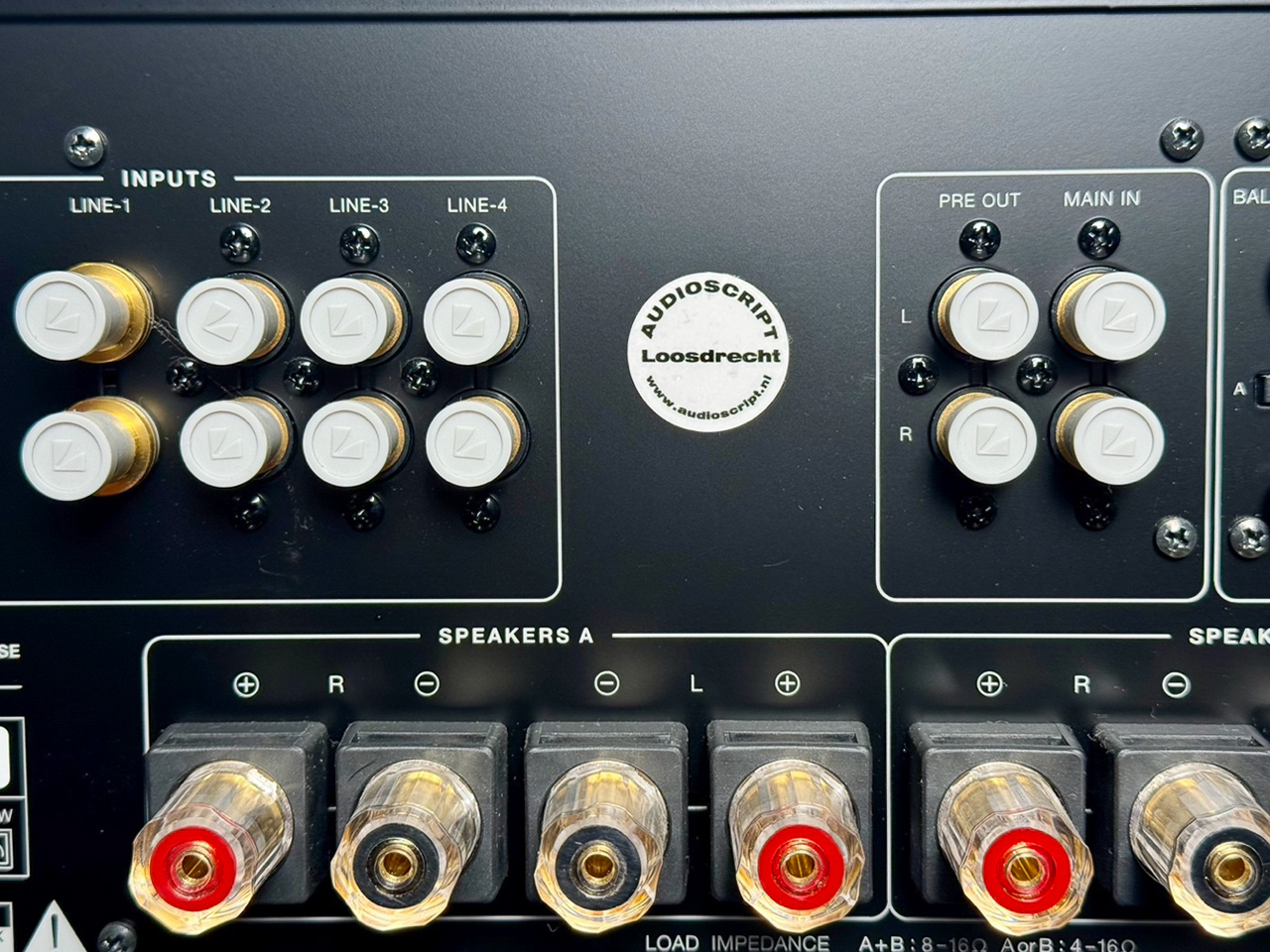

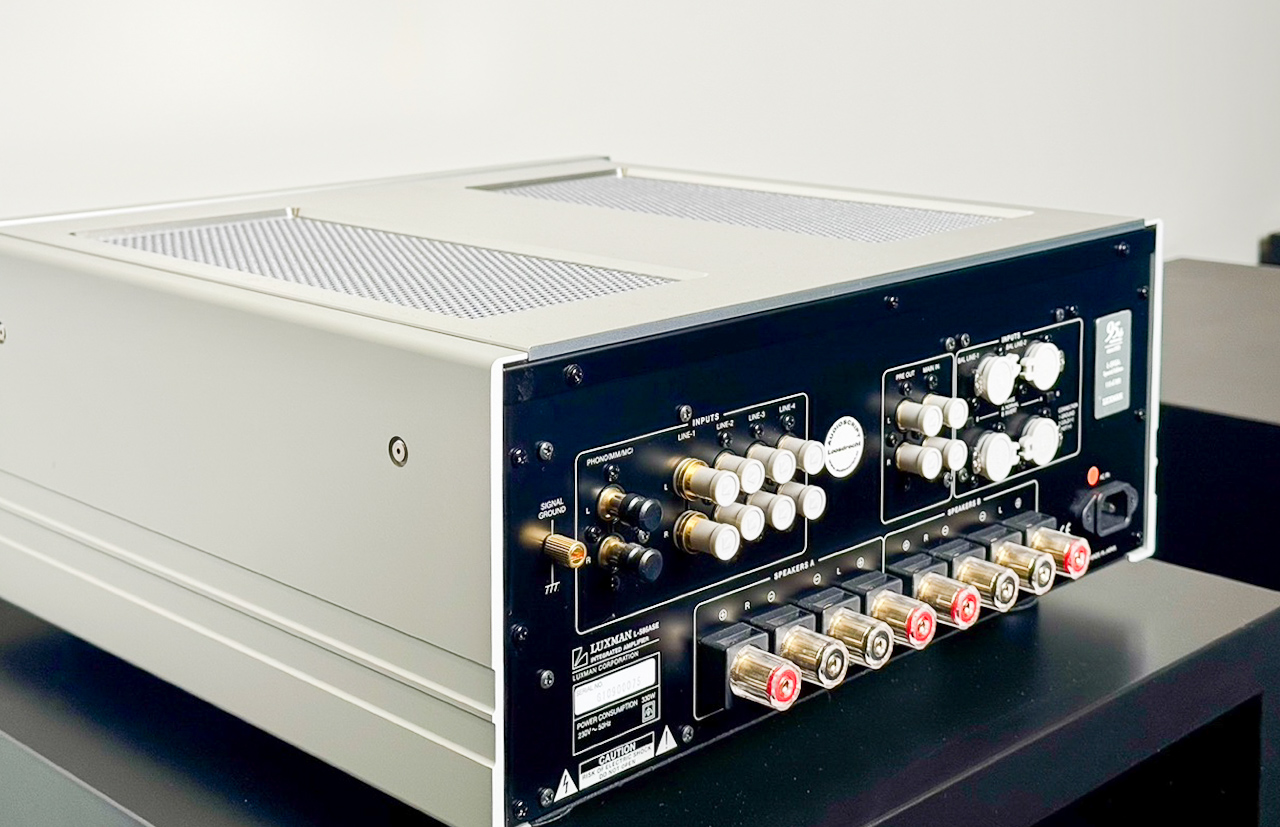

Special edition Luxman bestaat 95 jaar en viert dat heuglijke feit middels een zeer gelimiteerde Special Edition L-595A geheel analoge class A versterker. Op zoek naar een unieke pure klasse A-versterker? Dan heeft Luxman iets heel bijzonders voor u klaarstaan. De jubileumversie L-595A klasse A-versterker om precies te zijn. Uitgebracht met een oplage van slechts 300 exemplaren (waarvan de helft voor de Japanse markt bedoeld) om precies te zijn. Voor de échte liefhebbers en fans van het merk dus. De versterker zet een maximaal vermogen van 2 x 60 watt in 4 Ohm op de klokken, wat heel respectabel is voor een klasse A-exemplaar. Het ontwerp is gebaseerd op de legendarische Luxman L-570, die uit alweer 1989 stamt. De volumeregelaar is oorspronkelijk voor de voorversterker C-70f ontwikkeld; inmiddels ook alweer een klassieker uit 2003. Puur Analoog De Luxman L-595A is een puur analoge versterker, u treft er geen digitale in- of uitgangen op aan. Wel zes lijningangen, waarvan twee symmetrisch (XLR), een phono-voorversterker-ingang die zowel met MM als MC-elementen overweg kan en aansluitingen voor twee sets luidsprekers. Ook een voorversterker-uitgang staat paraat, alsmede een ingang die direct koppelt aan de eindtrap.

Kenmerken

Specificaties
Rated output - 30 W + 30 W (8 Ω) 60 W + 60 W (4 Ω) Total harmonic distortion - 0.007 % (8 Ω\, 1 kHz for both channels simultaneously\, line straight on) 0.06 % (8 Ω\, 20-20 kHz for both channels simultaneously\, line straight on) Pre-amplifier Input sensitivity/input impedance - PHONO (MM) : 2.5 mV/47 kΩ - PHONO (MC) : 0.3 mV/100 Ω - LINE : 180 mV/47 kΩ - BAL. LINE : 180 mV/55 kΩ Main-amplifier - Input sensitivity/input impedance - MAIN IN : 550 mV/47 kΩ Output voltage PRE OUT - 1V Signal to Noise Ratio: - PHONO (MM) : 91 dB or more (IHF-A correction\, 5 mV input) - PHONO (MC) : 75 dB or more (IHF-A correction\, 0.5 mV input) - LINE : 105 dB or more (IHF-A correction\, input shorted\, line straight on) Frequency Response: - PHONO (MM) : 20 Hz to 20\,000 Hz (±0.5 dB\, line straight on) - PHONO (MC) : 20 Hz to 20\,000 Hz (±0.5 dB\, line straight on) - LINE : 20 Hz to 100\,000 Hz (within –3 dB\, line straight on) Tone control Maximum Change: - Bass +/- 8dB at 100 Hz - Treble at +/- 8dB at 10 Khz Loudness control: - 100 Hz +7dB - 10 Khz +5dB Damping factor : 370 Supplied functions: • Input selector (LINE-1 to LINE-4\, BAL LINE-1 to BAL LINE-2\, PHONO MM/MC) • Speaker selector button (A\, B) • Mute button (remote control) • Monaural button (remote control) • Tone control • Phone jack • Phase inverter switch • Balance control • Subsonic button (remote control) • Separate button • Line straight button • Loudness button Accessories: • Remote control RA-17A • Owner’s Manual (This document) • Power cable • Safety cautions • 2 AAA batteries Power supply : 230 V 〜 (50 Hz) 330 W Power consumption : 0.4 W (at standby)\, 230 W (at no input) standby) Weight : 29.0 kg (main unit)
